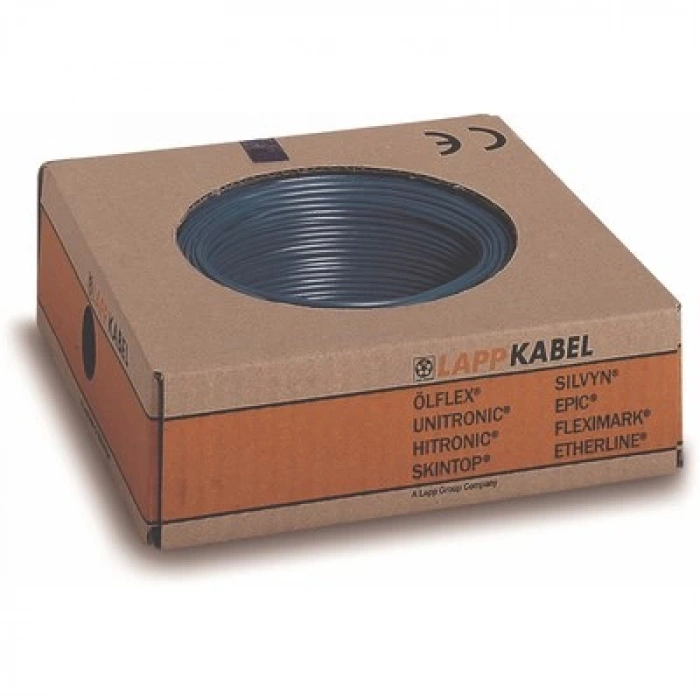

4510141 1X0,5 DBU H0,5V-K DARK BLUE KABLO LAPP
100 METRELİK PAKET
Benefits
Cables' <HAR>marking also stands for the international endorsement of national certification institutes' testing marks and certificates, e. g. <VDE><HAR>. The <HAR>marking is of special importance in case of goods traffic between European countries.
Application range
Internal wiring of devices
Protected installation in and on lighting equipments
Signal systems in and on plaster in tubes
Product features
Flame-retardant according IEC 60332-1-2
Spool: d1 = 18 mm; d2 = 200 mm; b = 85 mm
Norm references / Approvals
No cable type certified core insulation colour according to EN 50525-1/VDE 0285-525-1: transparent
<HAR> cable type certification acc. EN 50525-2-31
Product Make-up
Fine-wired copper conductor of bare copper strands in line with conductor class 5 acc. IEC 60228
Core insulation: Based on PVC
Classification ETIM 5
ETIM 5.0 Class-ID: EC000993
ETIM 5.0 Class-Description: Single core cable
Classification ETIM 6
ETIM 6.0 Class-ID: EC000993
ETIM 6.0 Class-Description: Single core cable
Conductor stranding
Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5
Minimum bending radius
According to EN 50565-1
4 x outer diameter (OD) for normal use; 2 x OD for cautions bending
Nominal voltage
U0/U: 300/500 V
Test voltage
2000 V
Current rating
VDE 0298 Part 4
EN 50565-1/ VDE 0298-565-1
Temperature range
Fixed installation: -40°C to +70°C
