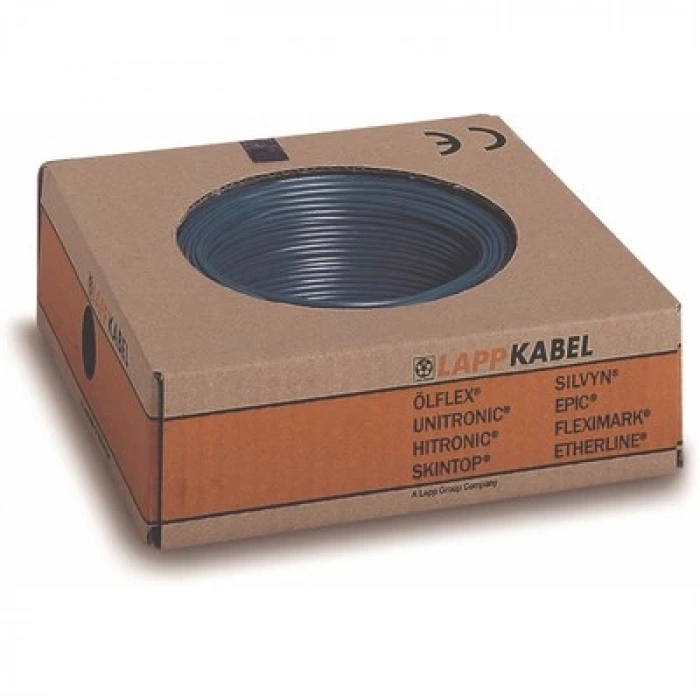

4510142 1X0,75 DBU H0,5V-K DARK BLUE KABLO LAPP 100 METRELİK PAKET

Benefits

• Cables' <HAR>marking also stands for the international endorsement of national certification institutes' testing marks and certificates, e. g. <VDE><HAR>. The <HAR>marking is of special importance in case of goods traffic between European countries.

Application range

• Internal wiring of devices
• Protected installation in and on lighting equipments
• Signal systems in and on plaster in tubes

Product features

• Flame-retardant according IEC 60332-1-2
• Spool: d1 = 18 mm; d2 = 200 mm; b = 85 mm

Norm references / Approvals

• No cable type certified core insulation colour according to EN 50525-1/VDE 0285-525-1: transparent
• <HAR> cable type certification acc. EN 50525-2-31

Product Make-up

• Fine-wired copper conductor of bare copper strands in line with conductor class 5 acc. IEC 60228
• Core insulation: Based on PVC

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000993
• ETIM 5.0 Class-Description: Single core cable
•

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000993
• ETIM 6.0 Class-Description: Single core cable
•

Conductor stranding

• Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5
•

Minimum bending radius

• According to EN 50565-1
• 4 x outer diameter (OD) for normal use; 2 x OD for cautions bending
•

Nominal voltage

• U0/U: 300/500 V
•

Test voltage

• 2000 V
•

Current rating

• VDE 0298 Part 4
• EN 50565-1/ VDE 0298-565-1
•

Temperature range

• Fixed installation: -40°C to +70°C
•
